High-Density Multi-electrode 2/3D Resistivity&IP Imaging system Tomograph Equipment for Gold Mineral Ore Finder
The WGMD-9 super high-density electric system represents a cutting-edge advancement in electronic technology. Developed utilizing state-of-the-art components like the Chinese Pocket PC, Bluetooth, 24-bit A/D conversion, and high-power control, it stands as a new generation system. Notably, this high-density electrical system achieves remarkable reductions in instrument volume and weight, surpassing current domestic and international standards. Its exceptional technical indicators and functions position it ahead of existing instruments in the industry. Moreover, its enhanced capabilities enable superior performance even in challenging and complex field environments.

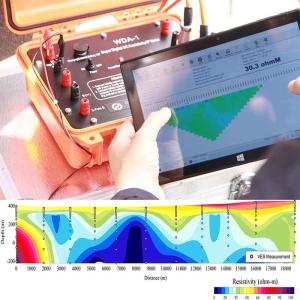

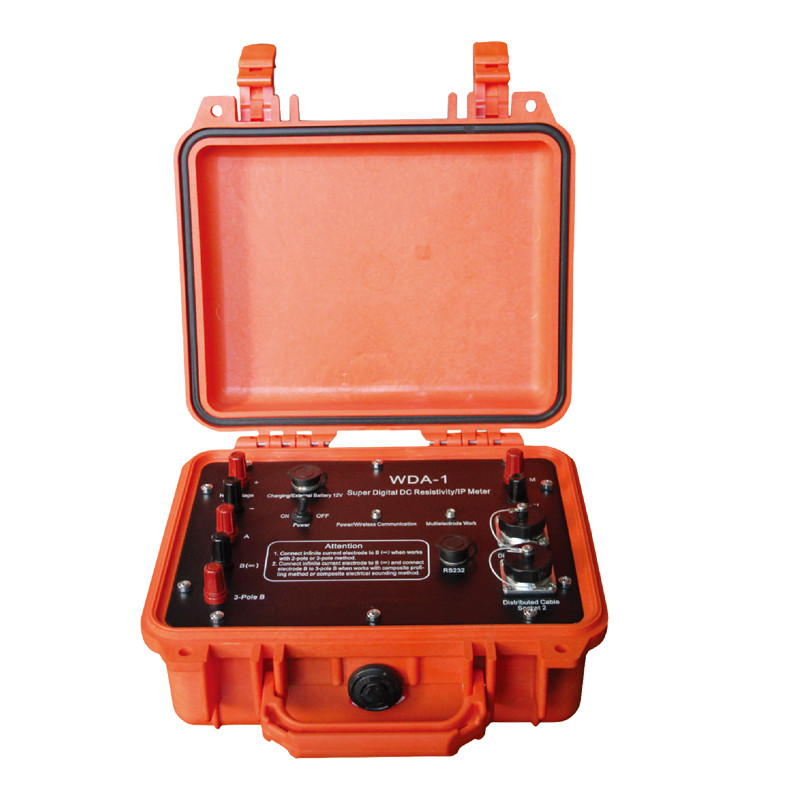

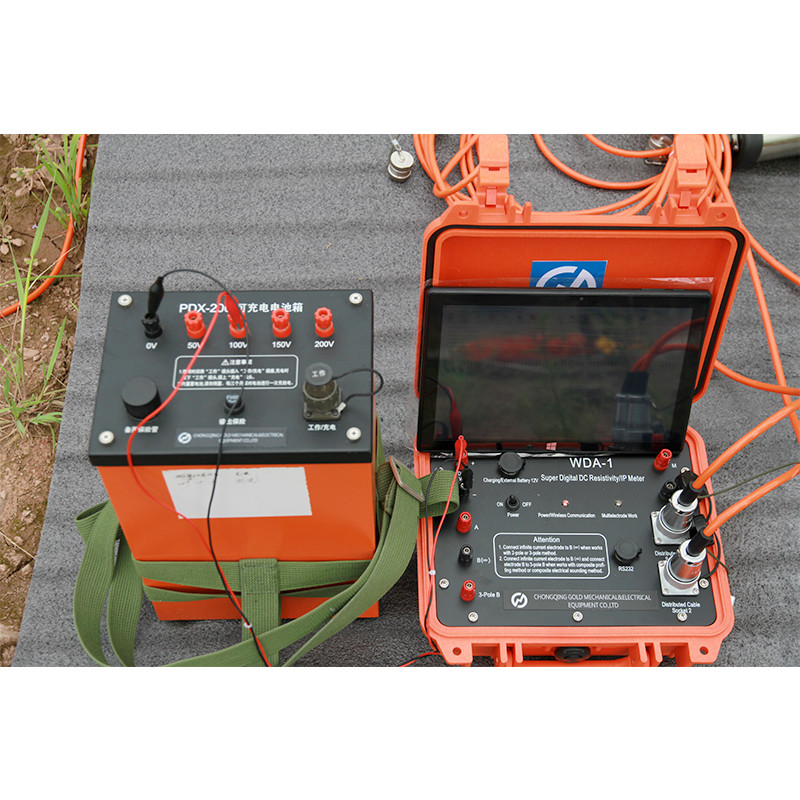

The entire system is controlled by the WDA-1 super digital DC electric instrument, which can perform centralized multi-electrode survey cable and electrodes, as well as distributed 2D/ 3D multi-electrode resistivity survey and 2D multi-electrode Res & IP survey with distributed multi-electrode survey cable and electrodes.
Main Feature
- Advanced electronic technology: Utilizes the latest components like the Chinese Pocket PC, Bluetooth, 24-bit A/D conversion, and high-power control for improved reliability, efficiency, and accuracy.
- High-density design: Significantly reduces volume and weight compared to traditional instruments, enhancing portability and ease of use in the field.
- Leading technical indicators: Surpasses current domestic and international instruments in terms of sensitivity, accuracy, and resolution, enabling precise measurements and data analysis.
- Enhanced functionality: Offers advanced features such as real-time data visualization, customizable measurement parameters, automated data processing, and efficient data storage and retrieval.
- Adaptability to complex environments: Designed to withstand and excel in challenging field conditions, ensuring reliable operation and accurate results in demanding geological and environmental settings.
Application
|  Underground water inspection
|  Energy resource prospecting
|  Mining and Mineral Exploration |
|  Railway and bridge inspecting
|  Engineering geology |  Geothermal field survey |

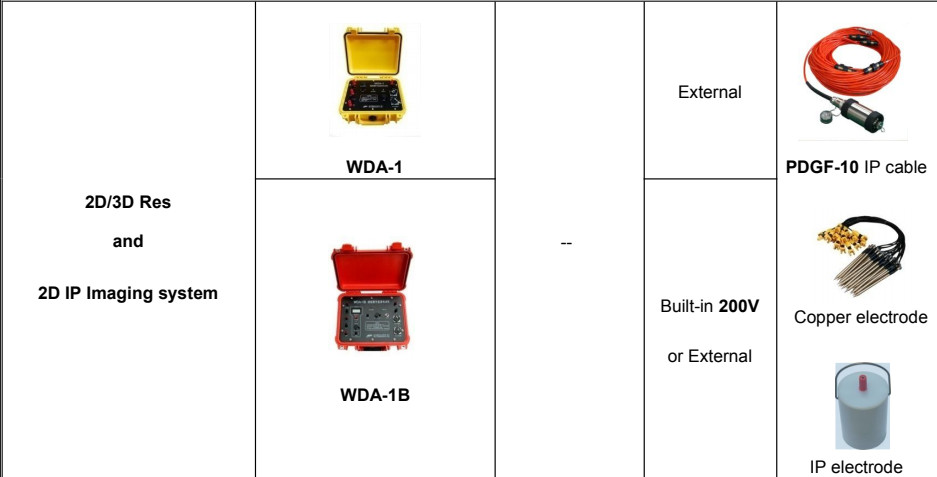

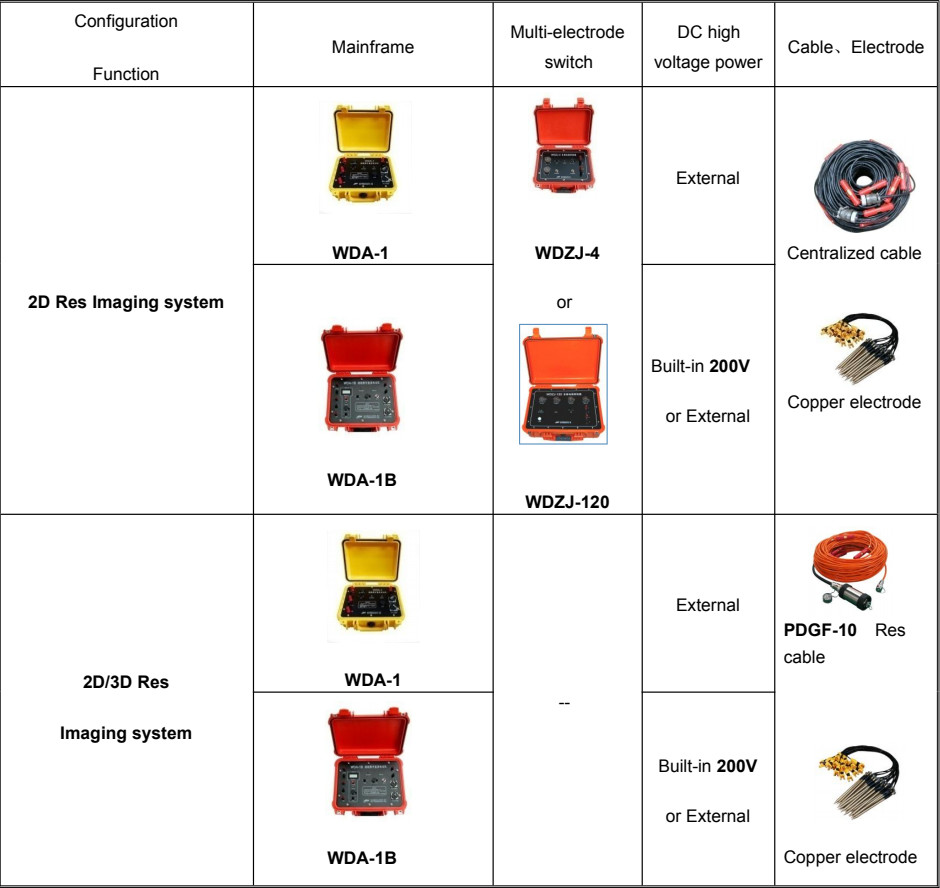

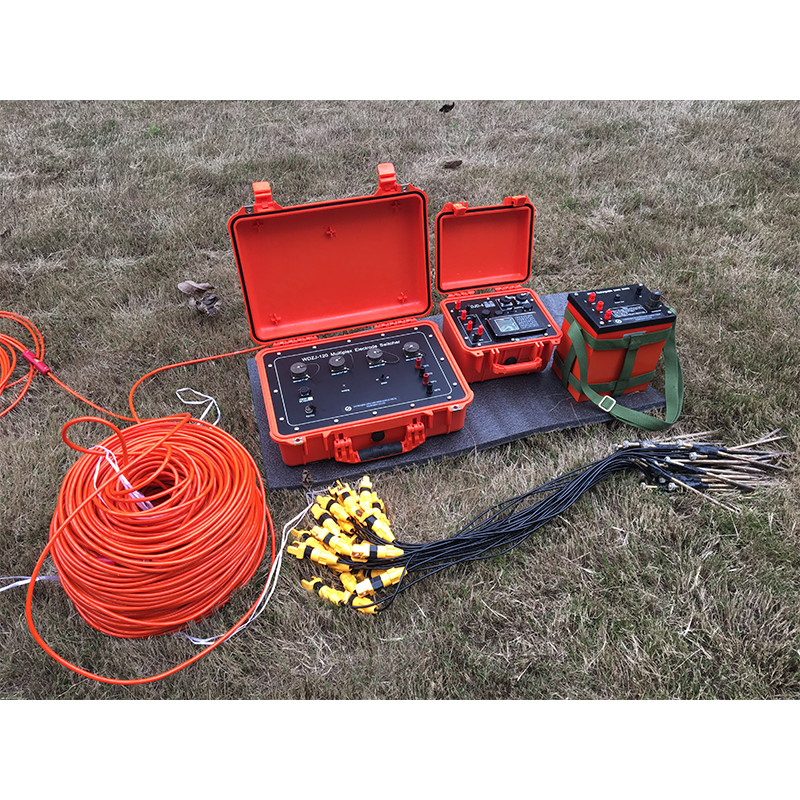

Configuration
Technical Specification
Host machine(WDA-1) parameter
| Receiving part |
| Voltage channel | ±32V(24 bit A/D) |
| Measurement accuracy | Vp≥5mV, ±0.2% ±1 character, 0.1mV≤Vp<5mV, ±1% ±1 character |
| Input impedance | >50MΩ |
| Apparent polarization accuracy | ±1%±1character |
| SP compensation range | ±10V |
| Current channel | 6A(24bit A/D) |
| Measurement accuracy | Ip≥5mA, ±0.2% ±1character, 0.1mA≤Ip≤5mA, ±1% ±1 character |
| As for 50Hz industrial interface(common and different mode)depression | Better than 80dB |
| Transmitter part |
| Maximum power | 7200W |
| Maximum supply voltage | ±1200V |
| Maximum supply current | ±6A |
| Supply current width | 1~60s, duty rate 1:1 |
| Others |
| Working temperature | -10℃~+50℃, 95%RH |
| Storage temperature | -20℃~+60℃ |
| Power supply | Built-in 7.4V4Ah(or outside 12V), lasting for 20h |
| Main unit port | A, B, M, N, DC high voltage, outside battery, 2 cable port, RS-232, blue tooth |
| Weight | ≤4kg |
| Dimension | 270mm*246mm*123mm |
| Pocket PC |
| Windows mobile 5.0 system, 624MHz, 640*480 true color, 128MB Flash ROM /64MB SDRAM, 512MB CF card, Blue-tooth, infrared, serial port, 2 rechargeable batteries, with Word, Excel. |

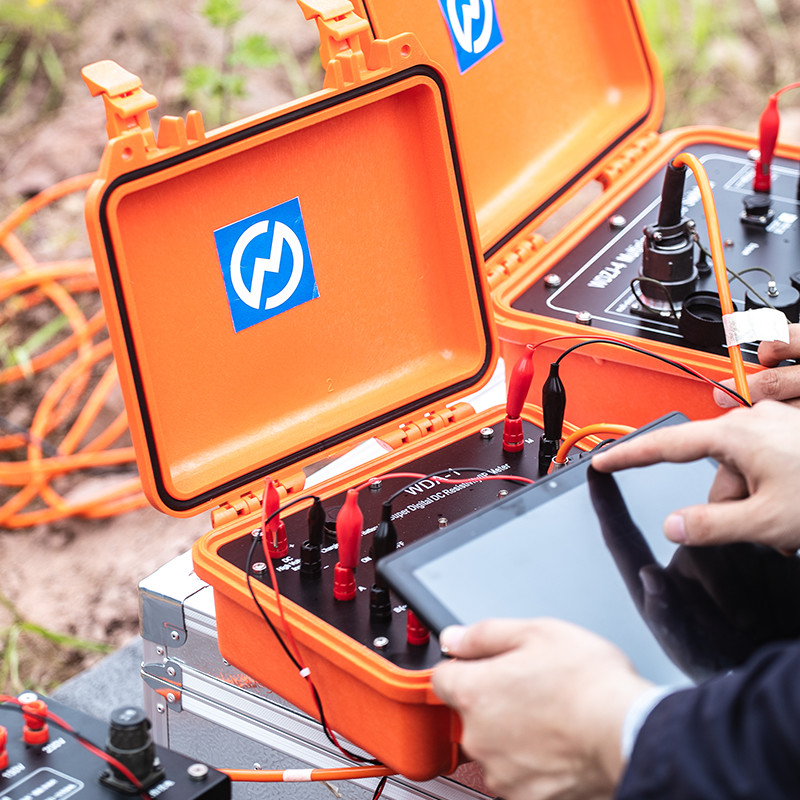

Detailed Images
Packing&Delivery
Safe and efficient packaging and transportation services. We prioritize item safety and use high-quality materials to minimize damage. Trust us for reliable and timely delivery, domestically or internationally. Your items are in good hands with our comprehensive solutions.
Company Profile
Chongqing Gold M& E Equipment Co., Ltd. is specializes in manufacturing and development of high-resolution geophysical instruments such as Resistivity Meter, IP instrument, Resistivity Imaging, Seismic instrument, magnetic instrument, borehole camera, borehole logger and drilling equipment ( core drill rig, water well drill rig,engineering drill rig, anchor drilling rig and so on. Also we supply the surveying equipment such as GPS, Total Station, Echo sounder and so on.
